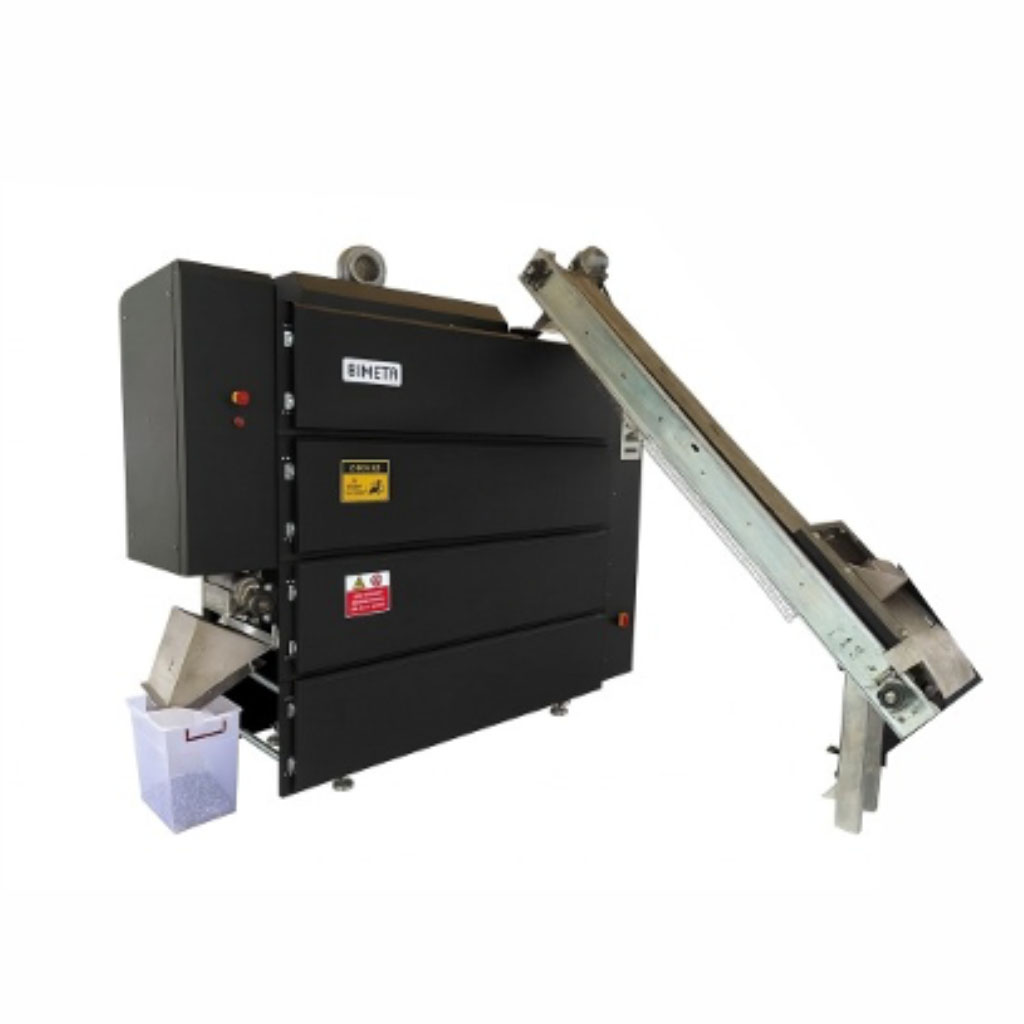

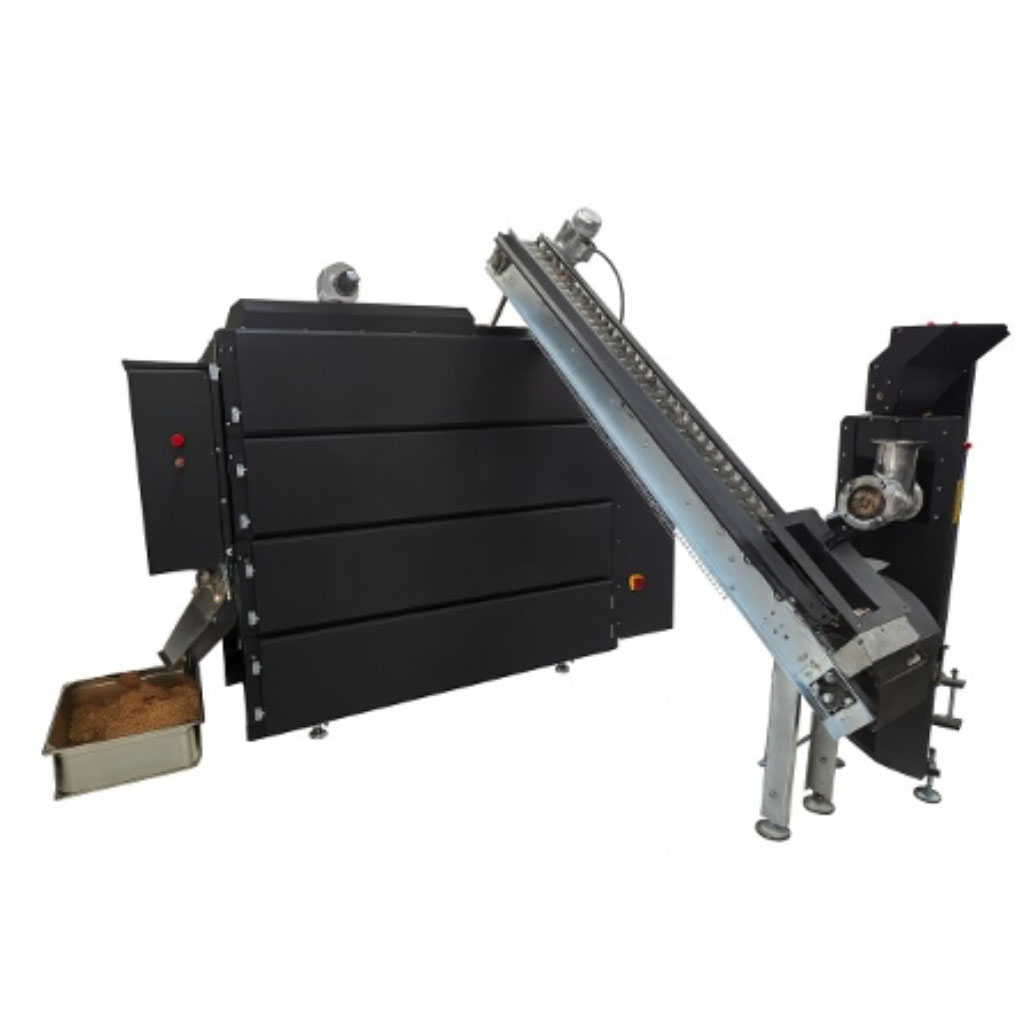

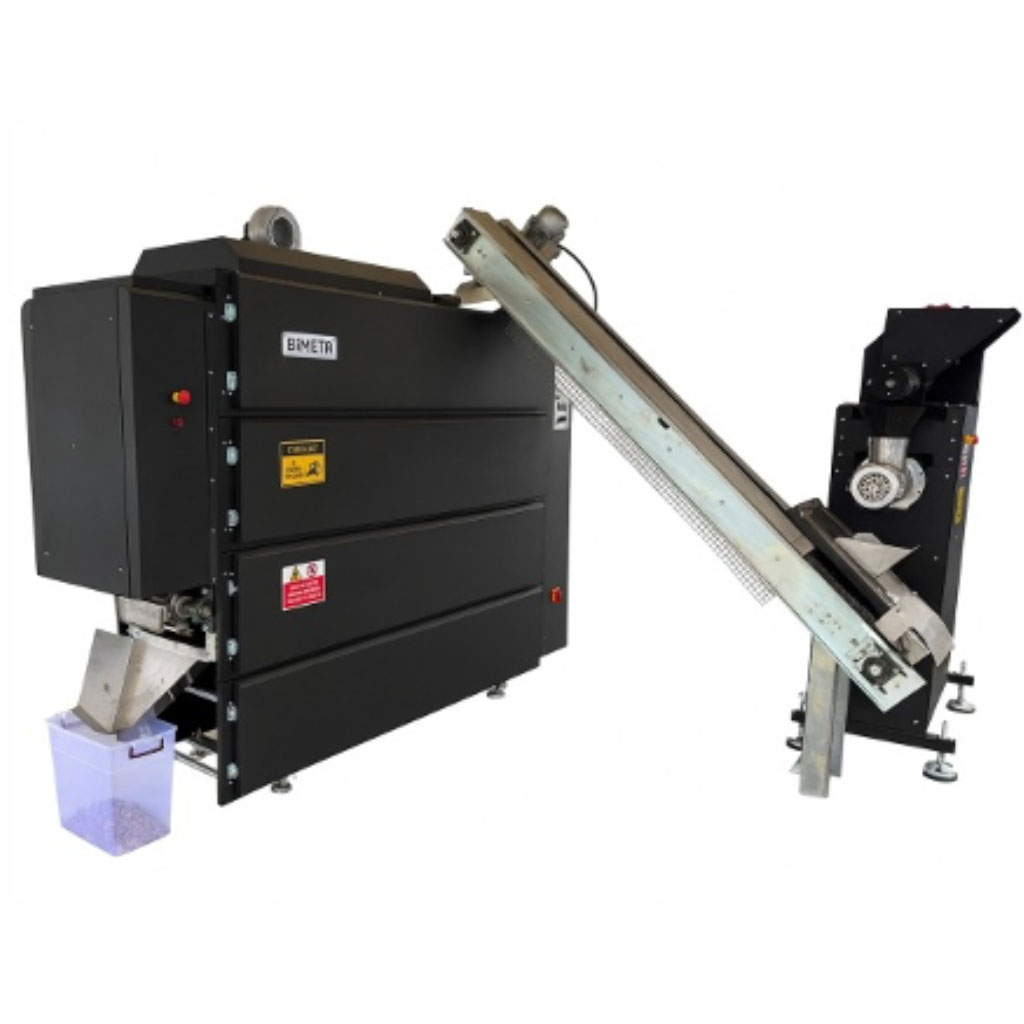

F600 - Deck Drying Oven
Technical Features and Benefits
3-fold automatic transfer system continuous and efficient drying with
Inlet conveyor the product from the pellet machine is automatically transferred to the oven
Product, 6-meter walking line during at least 6 minutes of heat exposure cleansed of pathogens
Digital temperature adjustment system with precise control of the desired drying rate
General Features
Processing Capacity: 1000 Kg / Day
Processing Time: 8 Hours
Waste Reduction Rate: %20
Control Panel Switch Panel
Power Consumption: 13 kWh
Total Power 13 kW
Noise Level: 55 dB
Operating Temperature: 140 °C
External Material: ST37/S235JR, 1 mm thickness
Inner Boiler Material: AISI 430, 0.8 cm thickness
Ventilation Chimney There is
Sustainable food production solutions for municipalities and shelters
Crusher/Shredder Unit
Efficient start, uninterrupted production
Coarse materials such as chicken bones, large fish bones and heads, dried bread, pastries, etc. are first passed through the crusher shredder (SHREDDER) machine and ground.
Fermentation Unit
The right formula, quality results
The fermentation unit is a special stage where the biological values in the formula are increased. It allows food to ferment naturally in a controlled temperature and humidity environment, increasing digestibility and providing probiotic enrichment. This unit supports prebiotic and enzyme development, which is critical for pet health.
Pelletizing/Shaping Unit
High-performance production power
If pellets are to be made from granulated food, the product is taken from the feeding machine and loaded into the pellet machine when it is in paste consistency without losing its moisture. Bimeta pellet machines can make pellet feeds with desired thickness and length.
Deck Drying Oven / Heat Treatment Unit
The final step for long-lasting formula
This unit increases the shelf life of the food and ensures the ideal humidity level.
With precise temperature control, there is no loss of nutrients in the products and the products are ready for packaging.
Flavor Coating / Dehumidification Unit
Flavor, freshness and texture quality
This process is optional and designed to increase the attractiveness of the feed, especially as cats are more picky. Dry pellets placed in the flavor coating machine are coated with flavor and then passed through a single layer dryer to dry again, ready for consumption. If the dried pellet feeds are packaged, they maintain their freshness for 3 months in moisture-free environments.
First Step for the Right Solution in Pet Food Production Check Our Product Catalog Now
